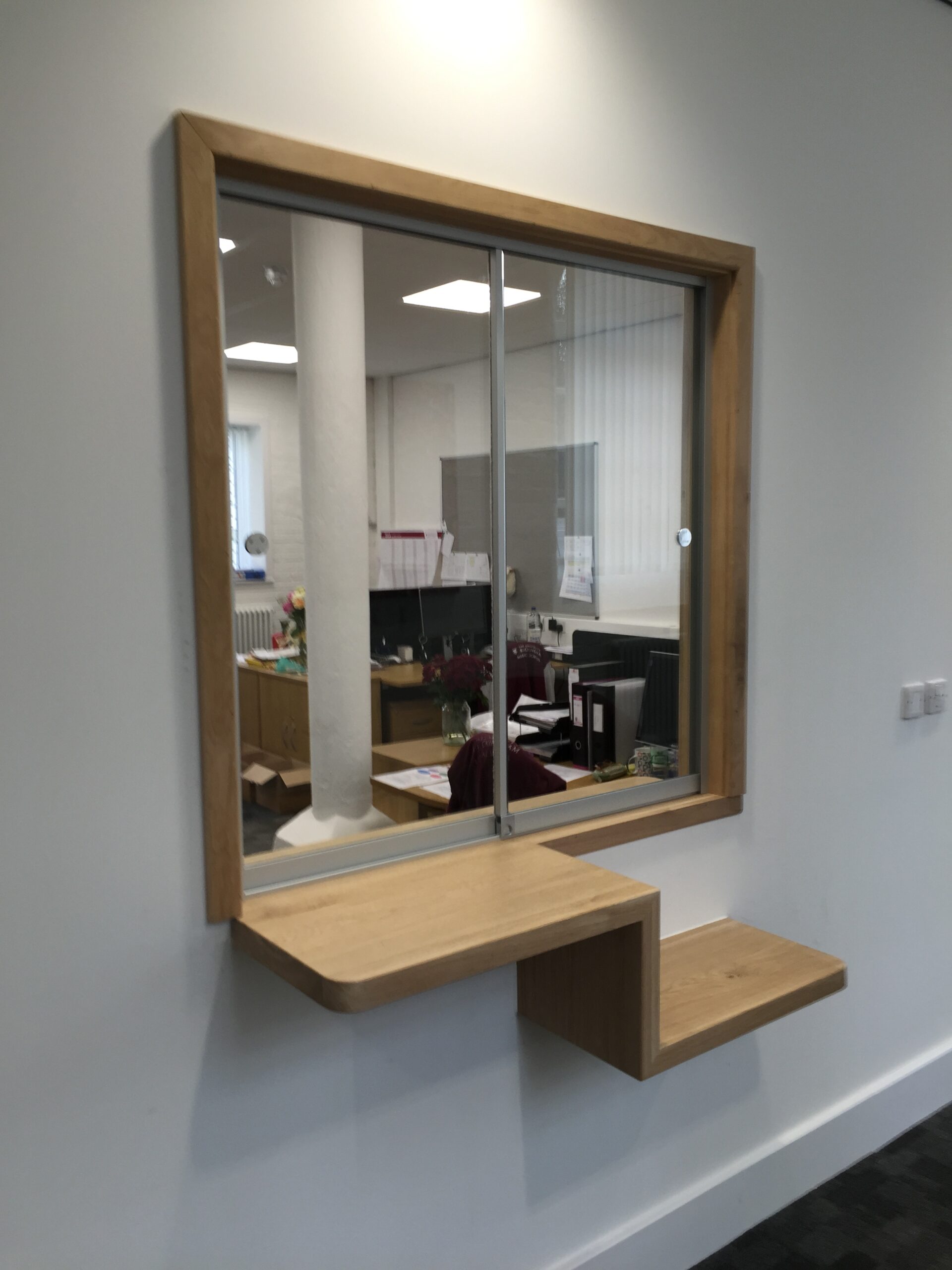

Aluminium Reception Hatches

Aluminium sliding glass reception hatches are an ideal solution for existing or new reception and servery counters. They can add a higher level of security to your space, in addition to a sense of professionalism to reception areas and foyers. Our horizontal sliding glass reception hatches are made to order and can be manufactured to suit a wide variety of requirements.

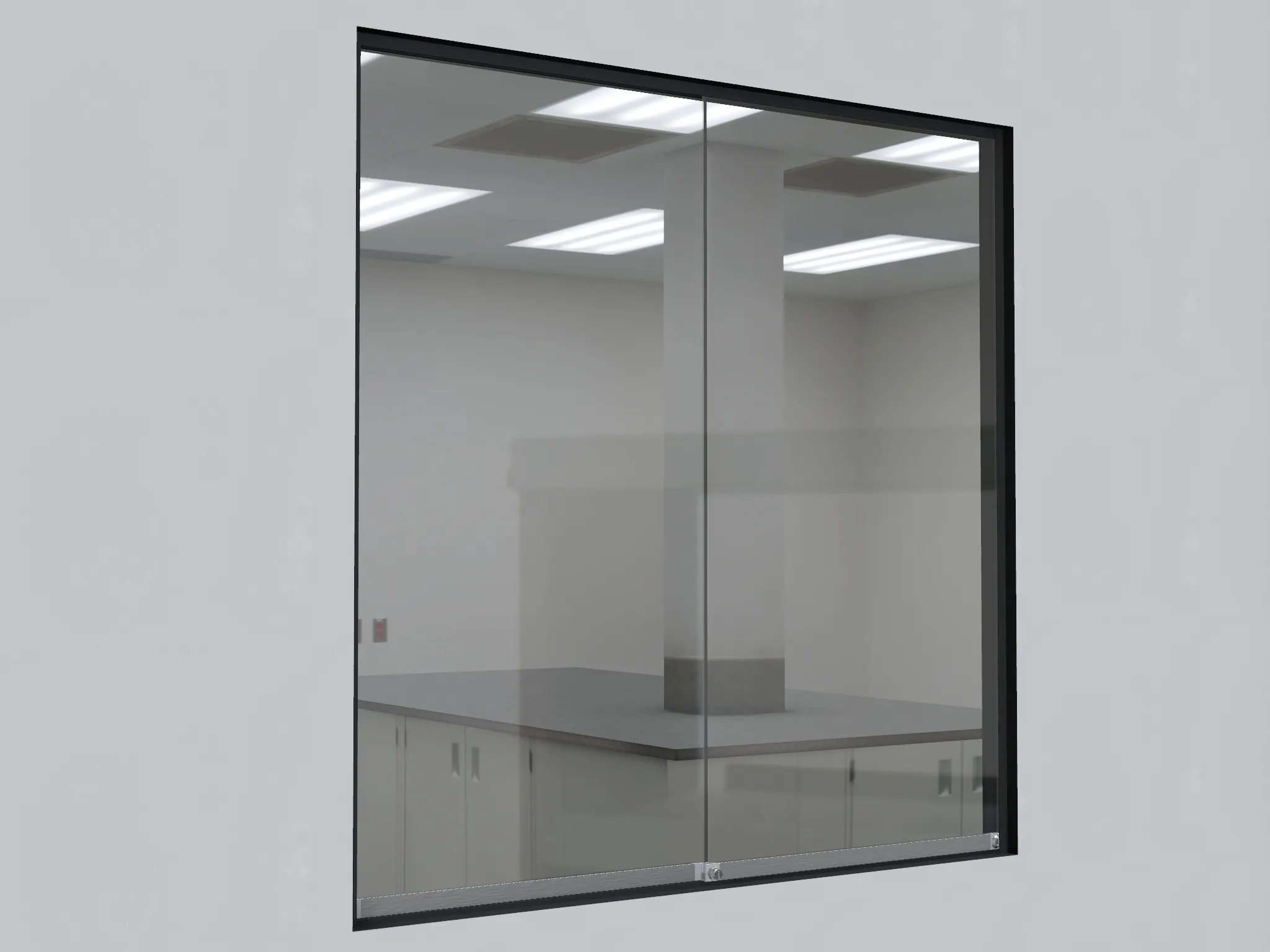

Horizontal Sliding Hatch Kit 10mm 2 Panel

A 2 panel configuration, available up to a maximum height of 2500mm. This is reinforced with 10mm toughened safety glass and satin anodised aluminium.

  • Available up to a maximum height of 2500mm
  • Maximum recommended height to a width ratio of each door 2:1
  • Glass type – 10mm toughened safety glass (clear/obscure), all edges polished
  • Standard finish – Satin anodised
  • Non standard finish – Powder coated to a standard RAL Colour

Standard Kit Includes

  • Double Bottom track
  • Double Top Track (Flock lined to prevent contact with aluminium track)
  • Side track with transparent damper profile
  • 4no. Stop units
  • 2no. Runners
  • Bedding strip – Transparent plastic
  • Draught excluder with brush pile insert
  • 4no. Roller Wheels (concealed)
  • 2no. Finger Grips – Polished aluminium finish

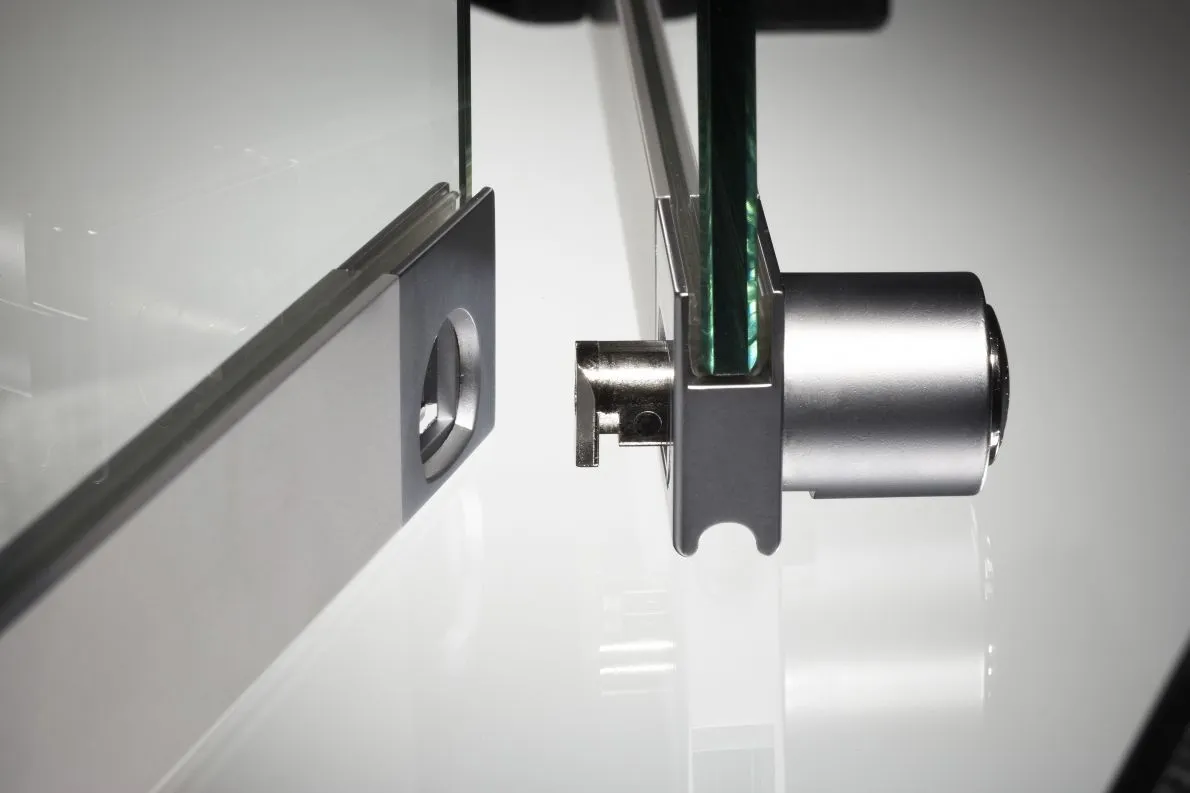

  • 1no. Security plunger lock – Polished aluminium finish

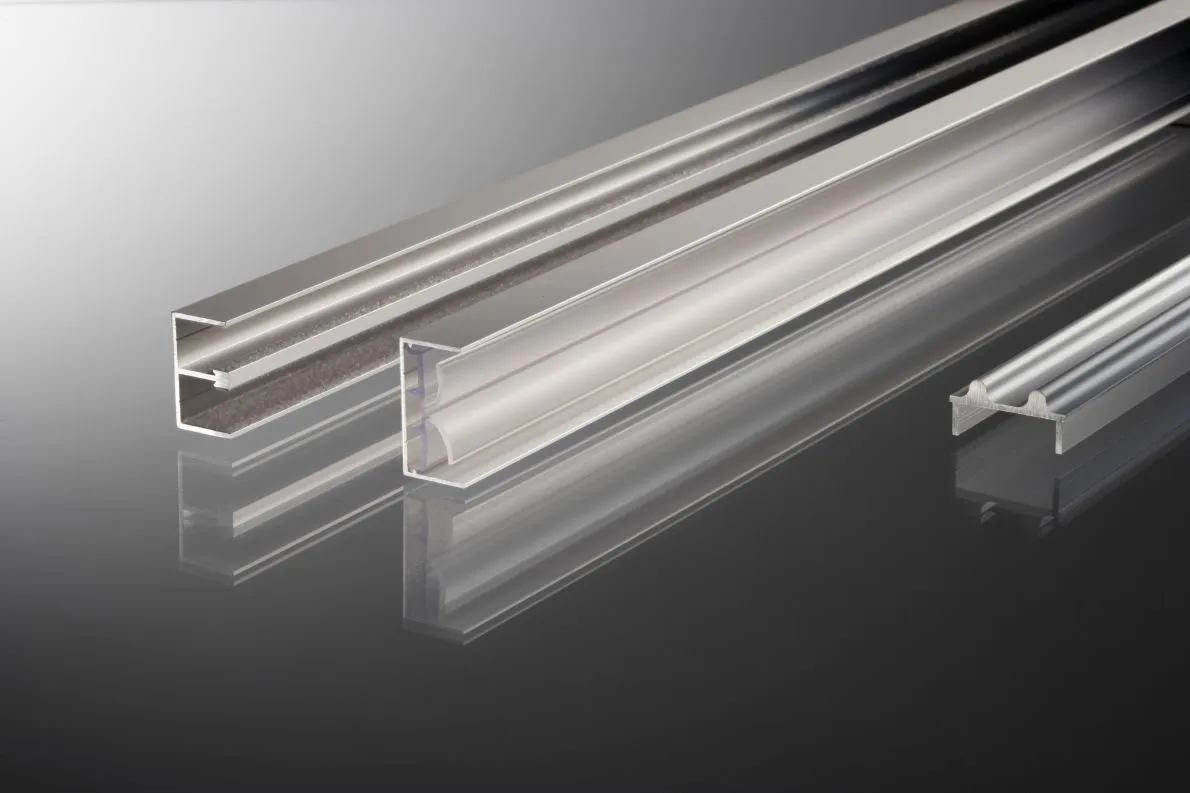

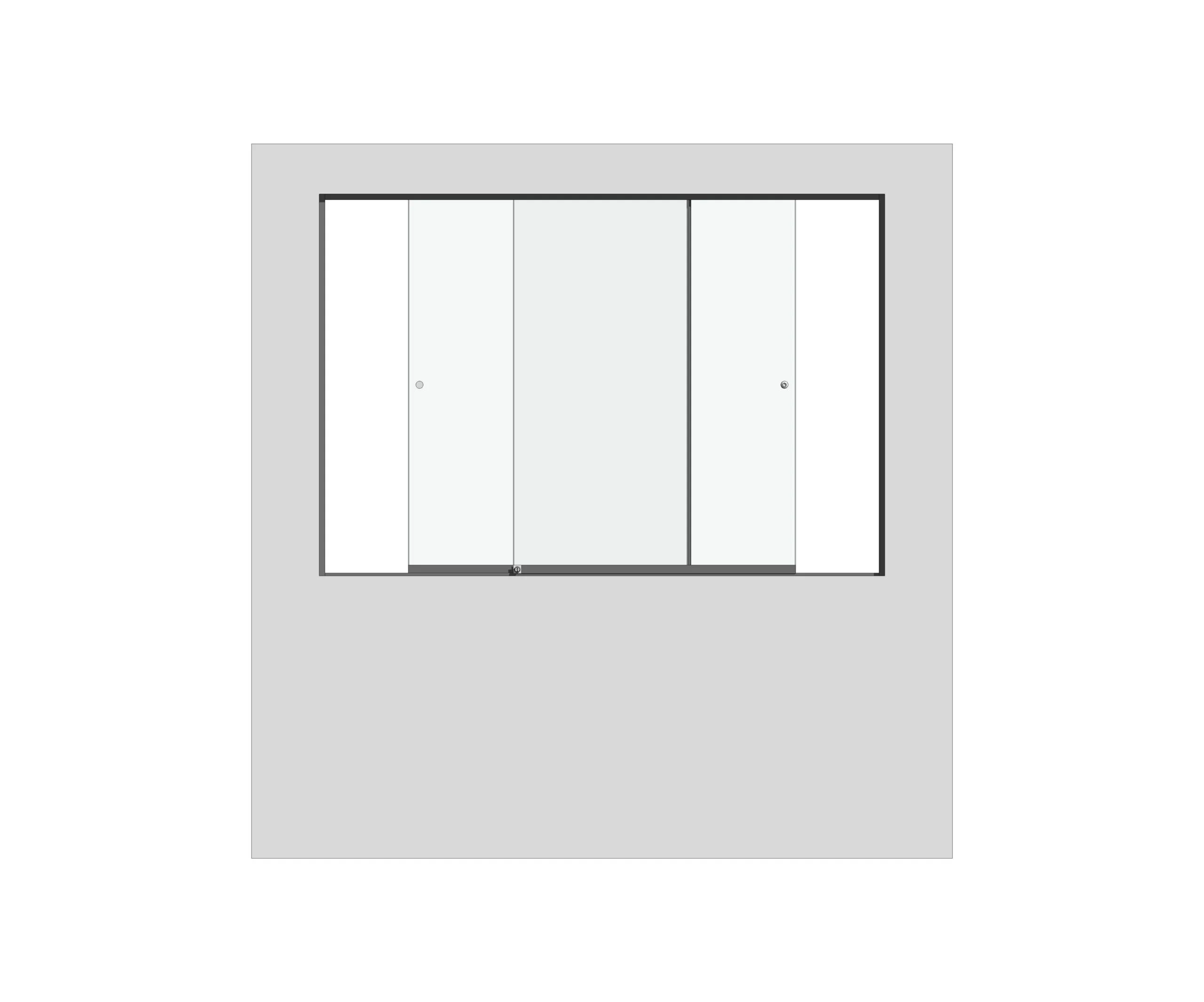

Horizontal Sliding Hatch Kit 6mm 3 Panel

A 3 panel configuration, available up to a maximum height of 1500mm. Reinforced with 6mm toughened safety glass and satin anodised aluminium framing.

  • Available up to a maximum height of 1500mm
  • Maximum recommended height to a width ratio of each door 2:1
  • Glass type – 6mm toughened safety glass (clear/obscure), all edges polished
  • Standard finish – Satin anodised
  • Non standard finish – Powder coated to a standard RAL Colour

Standard Kit Includes

  • Triple Bottom track
  • Triple Top Track (Flock lined to prevent contact with aluminium track)
  • Triple Side track with transparent damper profile
  • 6no. Stop units
  • 3no. Runners
  • Bedding strip – Transparent plastic
  • 2no. Draught excluder with brush pile insert
  • 6no. Roller Wheels (concealed)
  • 2no. Finger Grips – Polished aluminium finish
  • 2no. Security plunger lock – Polished aluminium finish

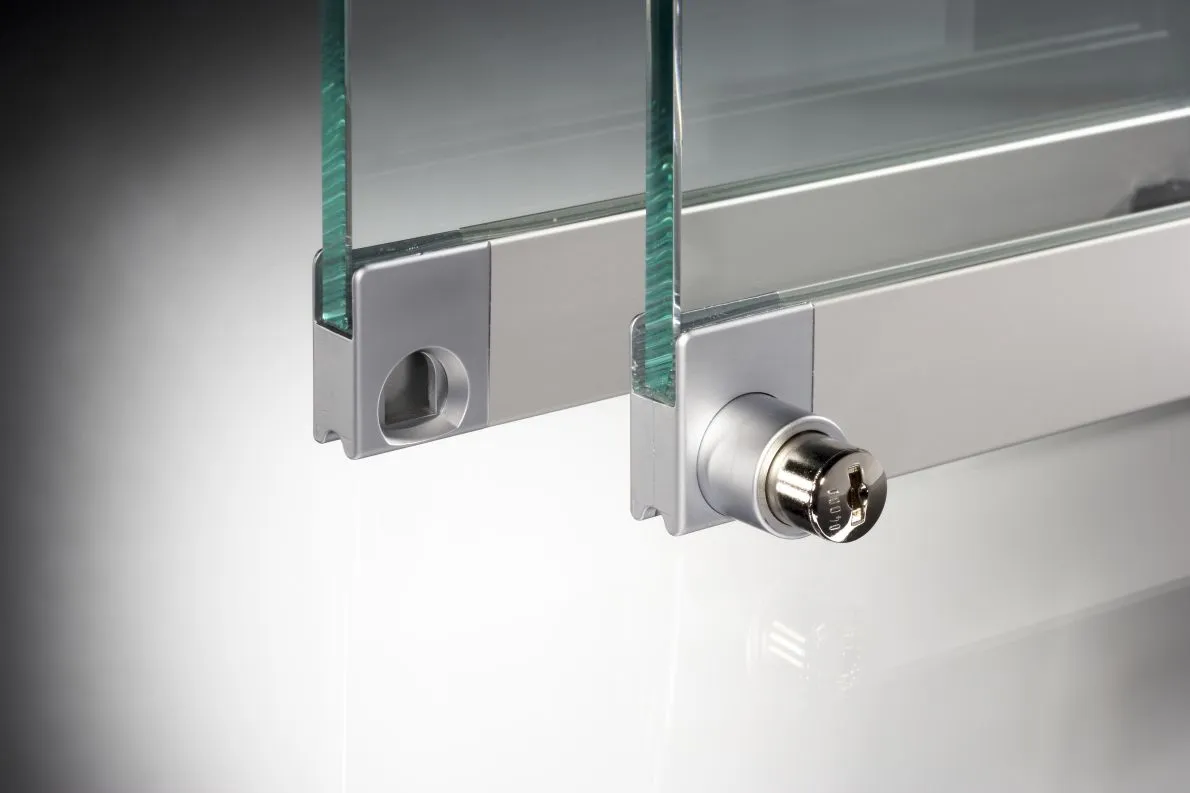

Horizontal Sliding Hatch Kit 6mm 2 Panel

A 2 panel configuration, available up to a maximum height of 1500mm. Reinforced with 6mm toughened safety glass and satin anodised aluminium framing.

  • Available up to a maximum height of 1500mm
  • Maximum recommended height to a width ratio of each door 2:1
  • Glass type – 6mm toughened safety glass (clear/obscure), all edges polished
  • Standard finish – Satin anodised
  • Non standard finish – Powder coated to a standard RAL Colour

Standard Kit Includes

  • Double Bottom track
  • Double Top Track (Flock lined to prevent contact with aluminium track)
  • Side track with transparent damper profile
  • 4no. Stop units
  • 2no. Runners
  • Bedding Strip – Transparent plastic
  • Draught excluder with brush pile insert
  • 4no. Roller Wheels (concealed)
  • 2no. Finger Grips – Polished aluminium finish
  • 1no. Security plunger lock – Polished aluminium finish

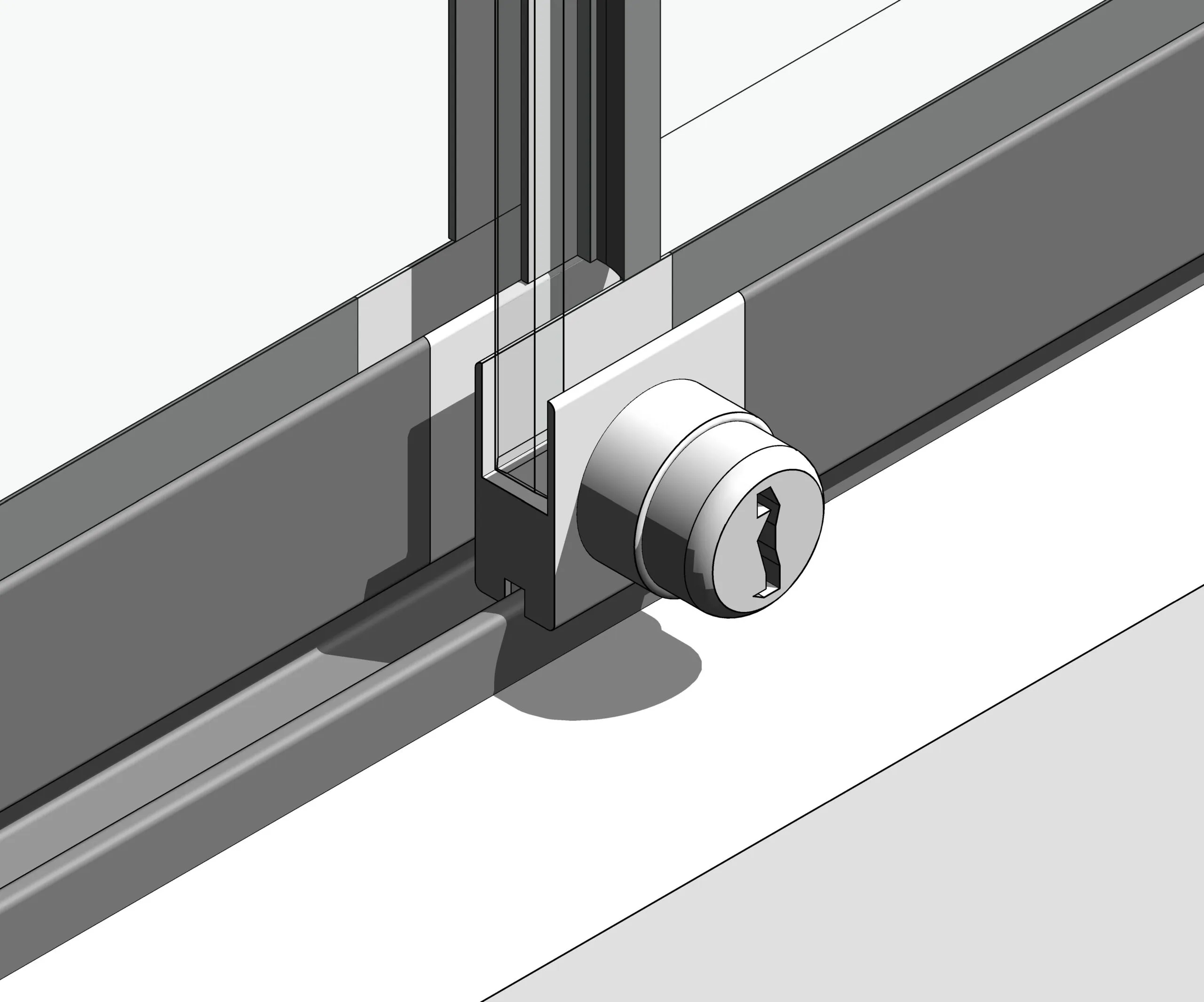

Aluminium Hatch BIM Component

All of our aluminium horizontal sliding glass reception hatches are available in a kit form to suit an existing lining frame, or we can manufacture a lining frame with integral hardwood shelf to your specification.
